Outstanding cutting capacity
'The Husqvarna X-Torq® engine combined with a market leading cutting diameter offers outstanding cutting capacity.
Large fuel tank
The 0,65l fuel tank enables longer runtime. Improved productivity as fewer time-consuming stops for refueling are necessary.
Wear protection
Ensures the aluminium shaft is not being worn out. The wear protection is quick and easy to replace if needed.
Intuitive controls
The choke and purge are easy to reach and understand.
Connectivity ready
Dedicated space for Husqvarna connectivity device, which enables easy connection to digital services such as Husqvarna FleetServices.
Integrated service port
An integrated service port offers improved troubleshooting through easy connection to Husqvarna Service Hub.
For full-time professional use
High-quality materials and proven components, tested according to highest standards offers high durability and decreased service costs.
High handle bar
High handle bar increases freedom of movement when working on slopes.
LowVib™
Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.

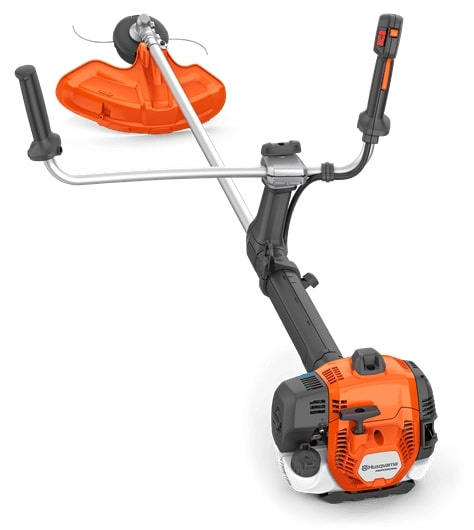

Adjustable handlebar
Adjustable and ergonomically designed handlebar for best comfort.
Offset handle bar
Angled handlebar and comfort handles provides excellent grip and working position.

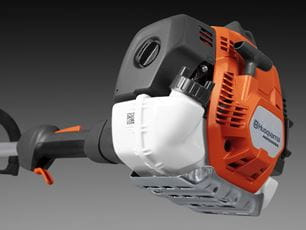

X-Torq® engine
The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

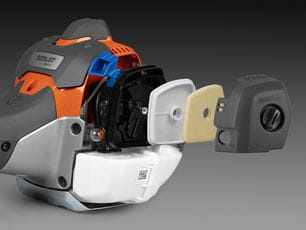

Efficient air filter
The efficient air filter provide less cost for service and less engine wear.
Stand alone starter
The stand alone starter makes it easy to change starter cord if needed.
Auto return stop switch
Stop switch automatically resets to the ON position for trouble-free starting.
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Optimal Cutting Performance
Trimmer head designed for high torque to deliver optimal cutting performance when parallel to the ground
High Line Capacity
Tap 'n' Go trimmer head is easy to use and refill

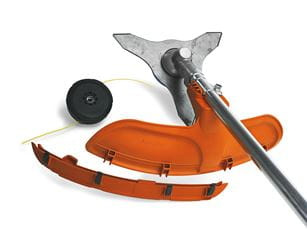

Combi-guard
The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.
Engine | All ex US, T35 + Grass 255-4 (1") Art no: 970 44 67‑01 |
Cylinder displacement | 25.4 cm³ |
---|---|
Power output | 1 kW |
Fuel tank volume | 0.65 l |
Fuel consumption | 600 g/kWh |
Maximum power speed | 8,500 rpm |
Idling speed | 3,000 rpm |
Maximum rpm output shaft | 8,200 rpm |
Electrode gap | 0.55 mm |
Clutch engagement speed (±120) | 4,000 rpm |
Torque, max. | 1.2 Nm |
Torque, max. at rpm | 6,000 rpm |
Spark plug | Husqvarna HQT-2 |
Equipment | |
Grass blade | Grass 255-4 |
Harness | Balance 55 |
Trimmer head | T35 M10 |
Handle type | Bike Handle |
Capacity | |
Cutting width | 45 cm |
Transmission | |
Gear ratio | 13 |
Drive gear angle | 30 ° |
Dimensions | |
Tube diameter | 24 mm |
Weight (excl. cutting equipment) | 5.8 kg |
Tube length | 1,483 mm |
Lubricant | |
Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
Sound and Noise | |
Sound pressure level at operators ear | 96 dB(A) |
Emission | |
Exhaust emissions (CO2 EU V) | 1,141 g/kWh |
Exhaust emissions (HC average) | 29.55 g/kWh |
Exhaust emissions (CO average) | 337.1 g/kWh |
Exhaust emissions (NOx average) | 0.31 g/kWh |
Vibration | |
Equivalent vibration level (ahv, eq) left handle | 2 m/s² |
Equivalent vibration level (ahv, eq) right handle | 2.5 m/s² |
