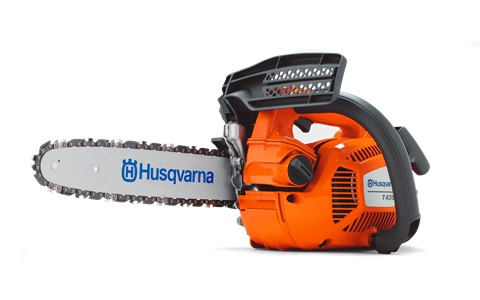

Mid-sized X-Torq® tree care saw. It´s a lightweight powerful chainsaw for pruning in parks as well as vineyards and fruit orchards.
The low weight and well-balanced saw body makes it very easy to work with.
Powerful and Efficient X-TORQ® Engine
Husqvarnas X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.
Adjustable Oil Pump
Customize and control oil flow to meet any need
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Side Chain Tensioning
Quickly and easily adjust the chain
Quick release air filter cover
Quick release cover saves time when cleaning or changing spark plug.

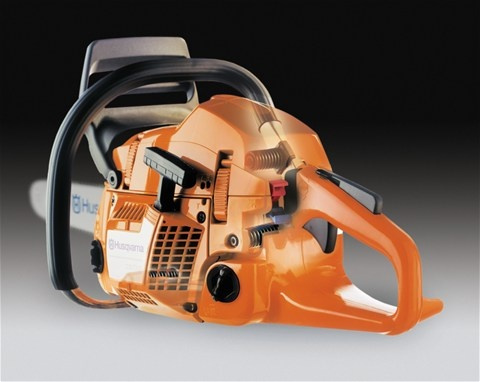

LowVib® Technology
Effective LowVib® dampeners absorb vibration, sparing the user’s arms and hands.
Hand guard
The hand guard design provides better view of the saw bar tip and improved operating control.
Rope attachment
A sturdy point for fastening a rope, making it easy to hoist the saw up into a tree.
Inertia-Activated Chain Brake
In case of a kickback, the effective inertia-activated chain brake immediately stops the chain to reduce the likelihood of injury.
Easier cold starting
Starting a cold engine requires less effort thanks to the air purge.

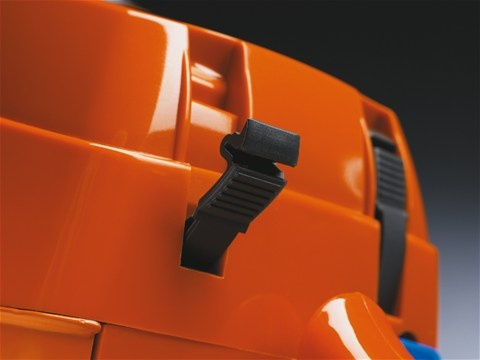

Flip-up tank cap
The flip-up tank cap is easy to open.
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Engine | 14" SN 3/8 mini" 1,3 mm H37 SKU: 966 99 72‑34 |
Power output | 1.5 kW |
---|---|
Cylinder displacement | 35.2 cm³ |
Maximum power speed | 10,000 rpm |
Maximum recommended engine speed | 12,500 rpm |
Idling speed | 2,900 rpm |
Torque, max. | 1.57 Nm |
Torque, max. at rpm | 7,500 rpm |
Clutch engagement speed (±120) | 4,700 rpm |
Fuel consumption | 408 g/kWh |
Spark plug | NGK CMR6H |
Electrode gap | 0.65 mm |
Ignition module air gap | 0.4 mm |
Oil pump type | Automatic |
Oil pump capacity, max | 9 ml/min |
Oil pump capacity, min | 3 ml/min |
Emission | |
Exhaust emissions (CO2 EU V) | 860 g/kWh |
Equipment | |
Bar length (inch) | 14 in |
Recommended bar length, min | 30 cm |
Recommended bar length, max | 35 cm |
Chain type | H37 |
Gauge | 1.3 mm |
Pitch | 3/8" mini |
Sprocket type | Spur 6 |
Dimensions | |
Weight (excl. cutting equipment) | 3.4 kg |
Lubricant | |
Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
Oil tank volume | 0.36 US pint |
Oil tank volume | 0.17 l |
