Joystick Kit
Joystick Kit
Joystick Kit
Joystick Kit
Husqvarna Spare Parts
Article nr: 5011226-02

Joystick Kit

€14.99

Add to cart
  • Information

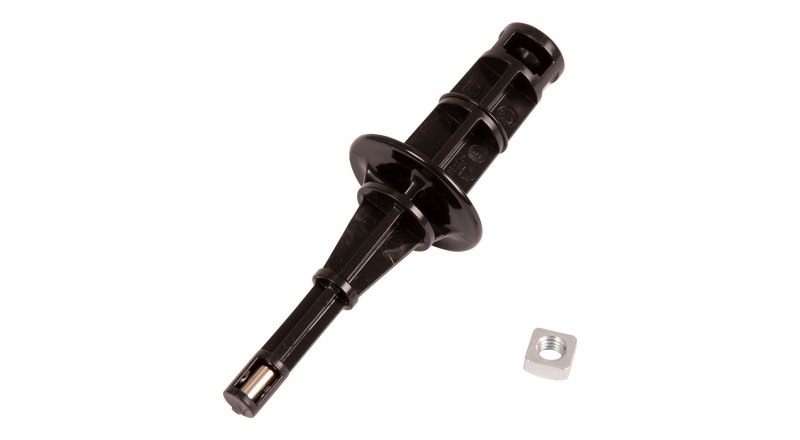

  • 501 12 26-02 - Joystick Kit

    The collision sensors consist of two components: a joystick and a circuit board. If your Automower displays the error message "collision sensor active," there are usually three possible issues:

    1. The body is not properly attached.
    2. The joystick has lost its magnet.
    3. The circuit board is defective.

    If you experience problems with active collision sensors, always check points 1 and 2 first. If the body is properly attached and the magnets on the joysticks are in place, it is most likely that the circuit board for the collision sensor is defective.


    Fits:

    Automower 220 AC, 2012-2015
    Automower 230 ACX, 2012-2015
    Automower 260 ACX, 2011
    Automower 265 ACX, 2012-2015
    Automower 320, 2013-2015
    Automower 330X, 2013-2015
    Automower 420, 2016 ->
    Automower 430X, 2016 ->
    Automower 440, 2017 >
    Automower 450X, 2016 ->
    Automower 520, 2018 ->
    Automower 550, 2018 ->
    SOLAR HYBRID, 2012-2014

    Gardena
    R160, 2013-2015

    Replacing 577 52 59-01/579 24 88-01/501 12 26-01
