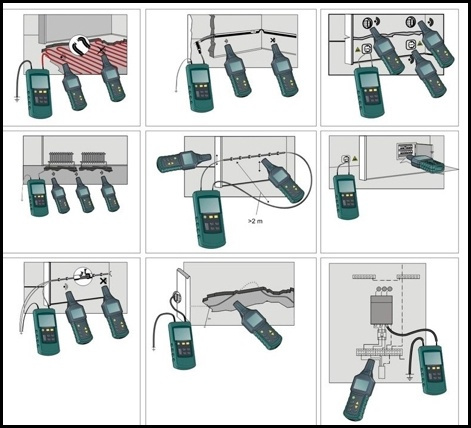

Applications

Instruments which are widely used in communication cable construction, electrical cable construction, building pipeline construction, telecommunications cables and power supply circuits. Electric line maintenance, line construction is an indispensable tool for maintenance personnel.

Detecting cables,electrical lines,water/gas supply pipelines buried in wall or earth

Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth

Detecting fuses and assigning current circuits

Detecting interruptions and short-circults in floor heating

Detecting sockets and distribution sockets having accidentally been covered by plastering

Features

The transmitter is integrated with the function of AC/DC voltmeter,which can measure 12 to 400V AC/DC voltage on a linear basis.

The screen of the transmitter can display preset transmitting power,transmitted codes,its own battery energy,mains voltage detected,AC/DC status of mains voltage detected,and warning symbol for mains voltage.

The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference

The sensitivity of the receiver can be adjusted either manually or automatically

The receiver can sweep frequency automatically,both the transmitter and the receiver can work under mute mode

Additional transmitters are available for expansion or to differentiate between multiple signals

compactness,durability and portability

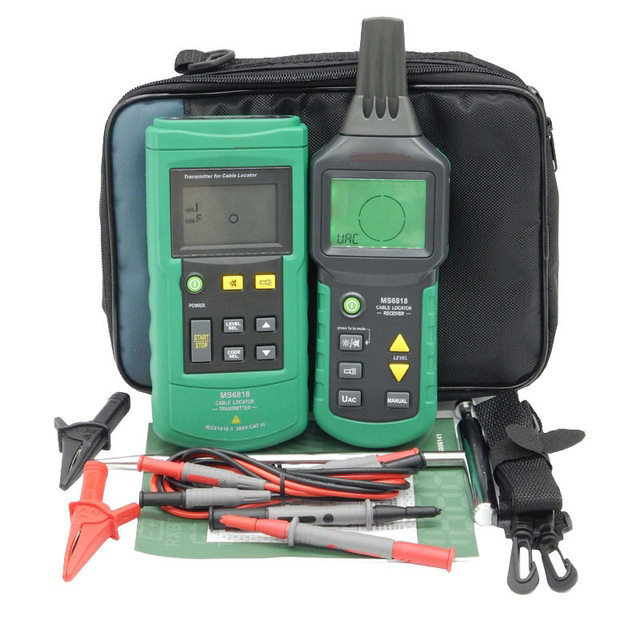

Package Contents:

1 x Receiver

1 x Transmitter

1 x Test Leads(Black & Red)

1 x Test Probe(Black & Red)

1 x Crocodile Clamps(Black & Red)

1 x Grounding Rod

1 x User Manual
