Printed Circuit Charging Station 320, 330X, 420, 430X, 440, 450X, 435X

€142.90

Information

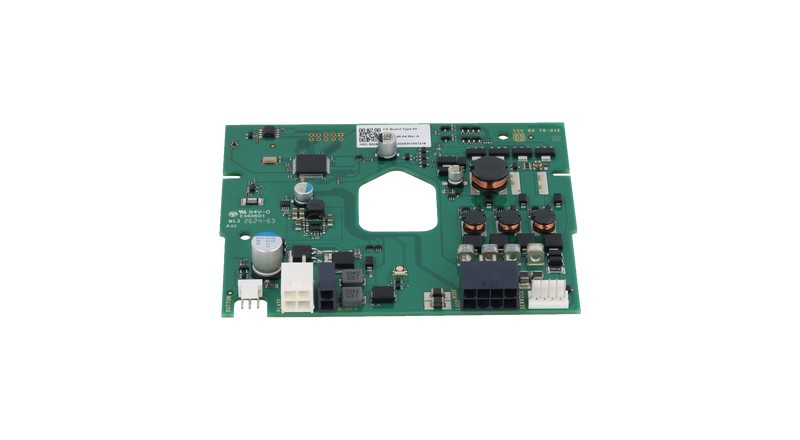

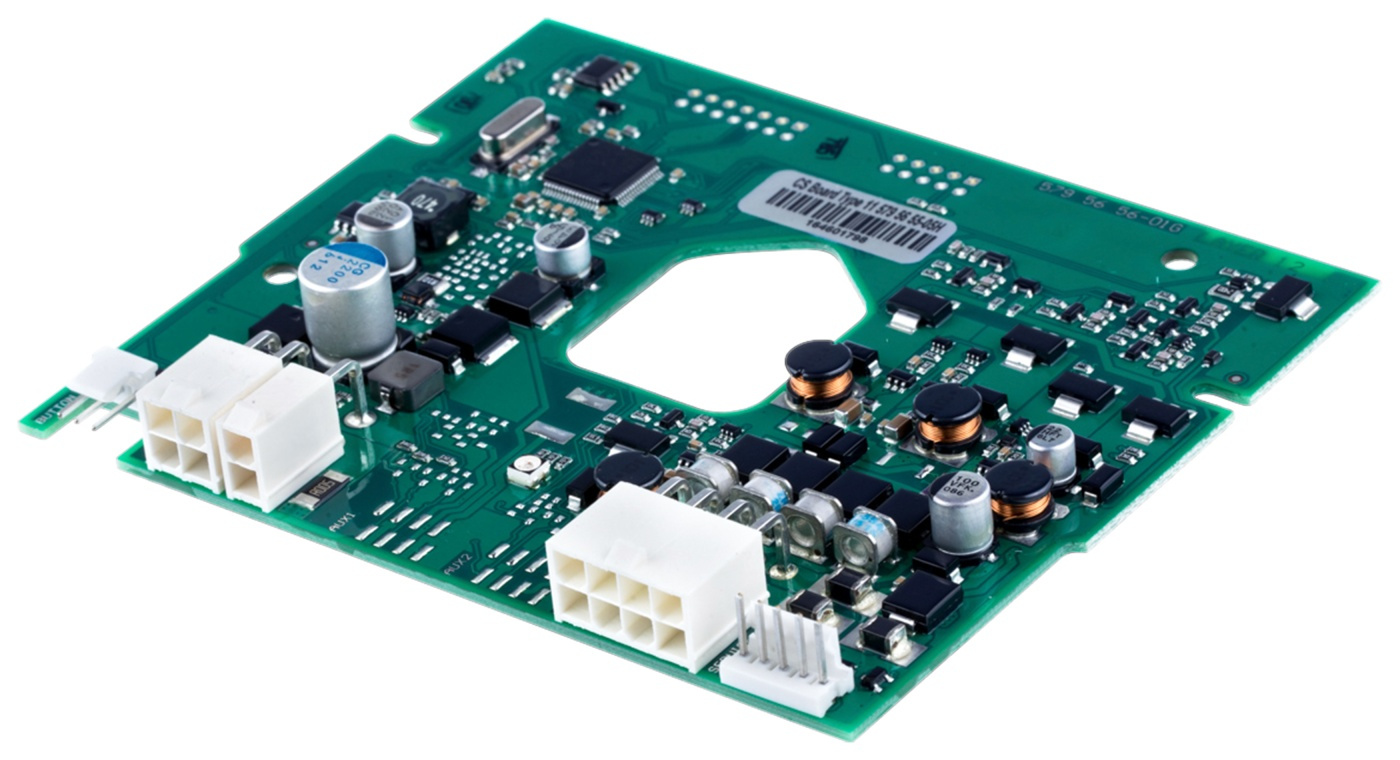

592 89 45-03 Printed Circuit Charging Station PCBA

Fits:
Automower 320 2013->
Automower 330X 2013->
Automower 420 2016->
Automower 430X 2016->
Automower 440 2017->
Automower 450X 2017->
Automower 520 2018->
Automower 550 2018->
Automower 435X AWD 2019->

The circuit board is one of the components that can be damaged by events such as lightning. The robot will often display the error message "no loop signal," even though the LED shows a steady green light. In this case, try disconnecting one of the boundary wires; when you do this, the LED should start blinking blue. If it doesn’t, the circuit board is likely faulty.
Don’t forget to pair the robotic lawnmower after replacing the circuit board. Do this via menu -> security -> advanced -> new loop signal.

Replacing: 579 56 55-04, 579 56 55-05, 589 50 78-01, 592 89 45-01, 5928945-02
